Our Heavy Duty slab support steel prop are telescopic to allow quick and easy height adjustment on site and are available in various sizes.
Item NO.:
AJSPOrder(MOQ):
300Payment:
TT PaymentPrice:
$12/pieceProduct Origin:
ChinaShipping Port:
Guangzhou/TianjinLead Time:
20-30 daysProduct Item: Heavy Duty Powder Coated Adjustable Scaffolding Acrow Steel Props
Product Description:

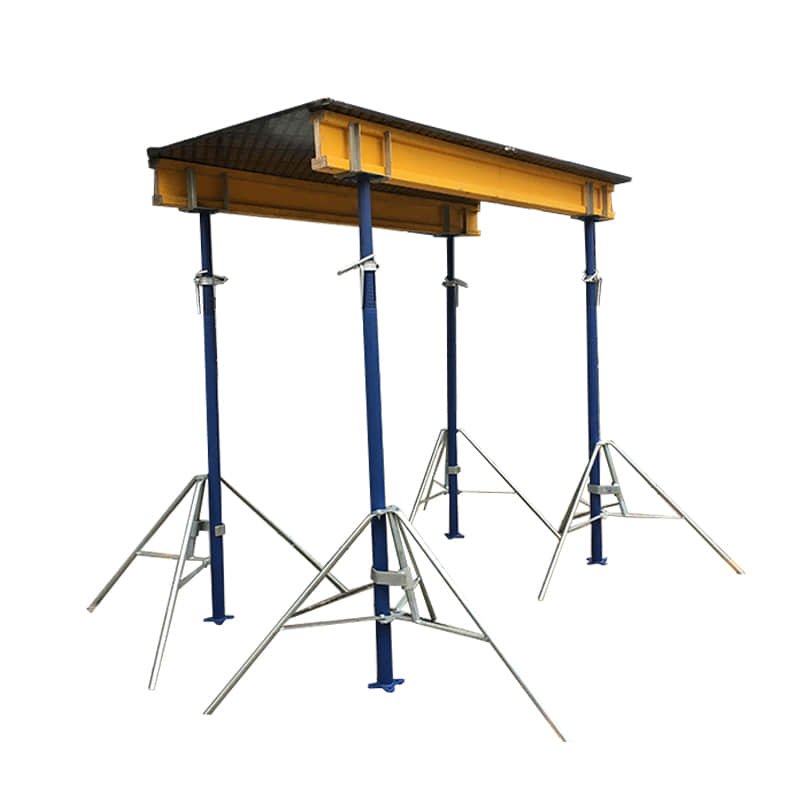

Beam support adjustable steel prop is primarily used for shoring to provide temporary support during repair or alteration work on overhead structures during the construction phase. The typical application is to support an existing vertical beam while the props are removed or restored.
Although the original prop was intended for vertical support only, the range has since been extended. Tension and compression props with pivoting footplates are used to support concrete formwork. Trench struts are used to support horizontal trenches. They are similar in design, but have a claw-shaped base plate.
|
Different surface finish can be selected:
Pre Galvanized Hot Dipped Galvanized Powder Coated Electronic Galvanized Painting |

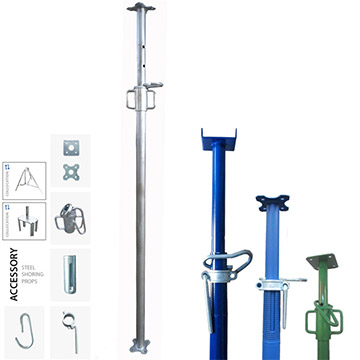

Accessories of prop:
Prop Nut Forkhead Deck Panel U Head Spigot Tripod Base Plate
With these accessories, steel prop can be assembled for diffrent usage. |
|
|

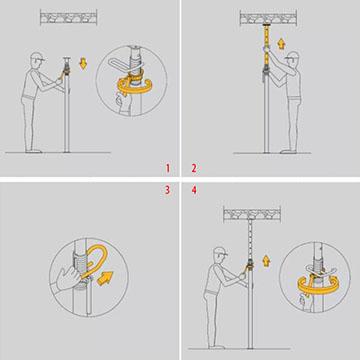

How to use:
Lower the colalr nut until below the slot of the prop thread by using handle Extend the inner tube of prop until reaching the desired height Insert the pin into the hole closest to the collar nut Make a final adjustment by turning the nut until the prop is fixed firmly in its position |

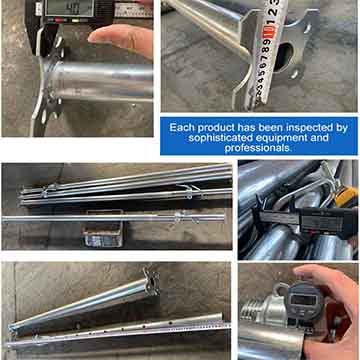

Quality Inspection:
With professional inhouse QC team, each acro jacks will be inspected to ensure your goods is under your requirements before shipping.
|
|

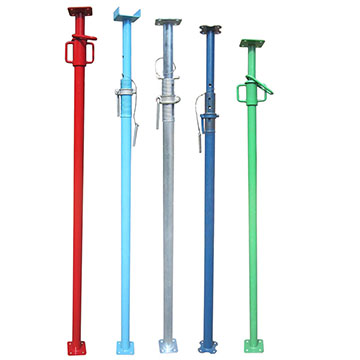

Different types of acrow scaffold:
Middle East Type Prop
|
||||
Adjustable Height
(mm) |
Inner Tube OD
(mm) |
Outer Tube OD
(mm) |
Thickness
(mm) |
Surface Treatment
|
1800-3200
|
48
|
60
|
1.8/2.0/2.2/2.5/3.0
|
Powder Coated/
Electric galvanized/Painted
|
2000-3500
|
48
|
60
|
1.8/2.0/2.2/2.5/3.0
|
|
2200-4000
|
48
|
60
|
1.8/2.0/2.2/2.5/3.0
|
|
2800-5000
|
48
|
60
|
1.8/2.0/2.2/2.5/3.0
|
|
|
||||
Italian Type Prop
|
||||
Adjustable Height
(mm) |
Inner Tube OD
(mm) |
Outer Tube OD
(mm) |
Thickness
(mm) |
Powder Coated/
Electric galvanized/Painted
|
1600-2900
|
48
|
56
|
1.6/1.8/2.0/2.2
|
|
1800-3200
|
48
|
56
|
1.6/1.8/2.0/2.2
|
|
2000-3600
|
48
|
56
|
1.6/1.8/2.0/2.2
|
|
2200-4000
|
48
|
56
|
1.6/1.8/2.0/2.2
|
|
|
||||
Spanish Type Prop
|
||||
Adjustable Height
(mm) |
Inner Tube OD
(mm) |
Outer Tube OD
(mm) |
Thickness
(mm) |
Surface Treatment
|
1600-2900
|
40
|
48
|
1.6/1.8/2.0/2.2
|
Powder Coated/
Electric galvanized/Painted
|
1800-3200
|
40
|
48
|
1.6/1.8/2.0/2.2
|
|
2000-3500
|
40
|
48
|
1.6/1.8/2.0/2.2
|
|
2200-4000
|
40
|
48
|
1.6/1.8/2.0/2.2
|
Application:
Clients Visit Us:
We Visit Clients:

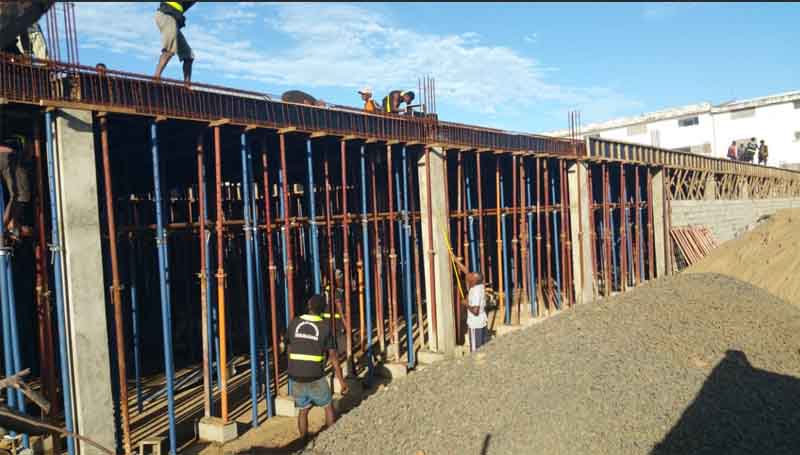

Projects:
Client Feedbacks:
Why Choose Us:
1.Stalbe Supply Chain System with 1000+ manufacturers with no MOQ, help you start business easily.
2.Have a 10 people logistics merchandising team with 22 years professional experienc , can well solve doucments and shippment problem.
3.Professional QC Team to control the quality, provide inspection pictures, videos and report.
4.Cooperating with more than 150 countries, 10000+ customers , well provide local market information.
