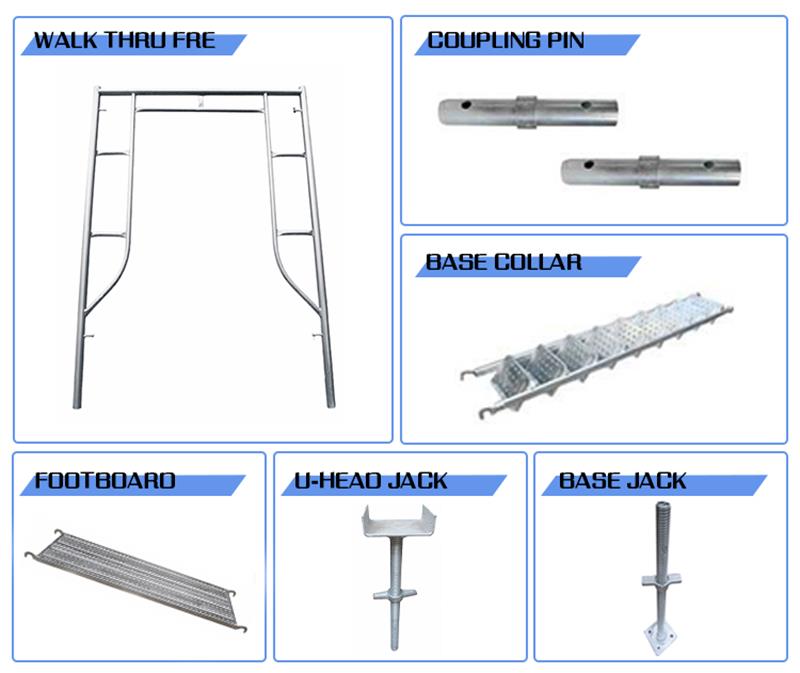

Mobile frame scaffolding has a very important role in building construction and daily life. So do you know what are the spare parts of mobile scaffolding? Mainly Cross Brace, scaffolding plate, connecting rod, adjusting base, fixed immobile base, scaffolding casters.

The following is also for you to detail what the role of these parts are.

Scaffolding Cross Brace:

Cross brace are crossed braces that connect every two mobile scaffolding gantries longitudinally. The two crossed prefabricated elements are drilled in the middle of the round hole, fixed with the foot screw is not moving, can be turned to facilitate transport and safety. Both sides of the prefabricated components squeeze flat part of the drilling of good pin holes, assembly with the door frame on the locking pin lock.

Scaffolding plate:

Scaffold walk board, also known as scaffold piece, is laid on scaffolding and operating frame to facilitate workers to walk on it, transfer materials and construction work of a temporary turnover use of construction materials.

Connecting bar:

The connecting bar is used for the vertical assembly and widening of the gantry of the mobile scaffold. When installed, inserted into the upper and lower door frame uprights, connecting rod consists of rod body and ring sleeve, ring sleeve into the hardware mold or the middle of the hole plug welding method and rod body fixed immobile.

Adjustable Jack base:

Adjustable Jack base is a support placed under the uprights of the bottom sector of the mobile scaffolding. It is used to expand the pivot area of the scaffold uprights, send the vertical load to the steel pipe frame substrate, and adjust the height and overall flatness and flatness of the portal scaffold. Adjustable base consists of screw , adjusting plate base plate.

Stationary base:

Fixed base is also called simple base, its role is the same as the adjustable base, but can not adjust the height. It is composed of base plate and fork.

Scaffolding casters wheel:

Scaffolding casters wheel, that is, the steel pipe frame dynamic pulley set, mobile scaffolding can move and car plate.
