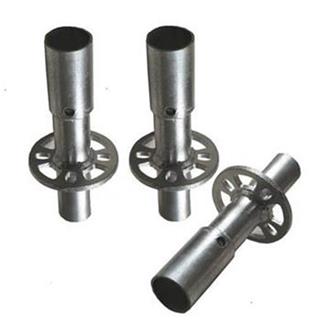

The ringlock scaffold, as a type of scaffolding, is also known as the daisy pan scaffolding system, the wheel pan scaffolding system, the buckle scaffolding, etc. The steel ring lock scaffold, which has a socket diameter of 133 mm and a thickness of 10 mm, has 8 holes cut in it, uses steel tubes as the main component, while its uprights are made of steel tubes of a certain length with a disc welded on every 0.6 m. A disc is welded to the steel pipe at 0.6 metre intervals, and this aesthetically pleasing disc is used to connect the bottom connection sleeve, while the crossbar is made by welding plugs to the ends of the steel pipe.

At present, ringlock scaffolding is used in power plants, refineries and tunnels, it can also be used in storage shelves, water tower interior and exterior decoration, modelling tables, stair systems and other stage erection.

The ringlock scaffolding can be formed into a variety of sizes and loads according to the needs of the user, double-row scaffolding, support columns, support frames, material lifting frames and other fully functional construction equipment, which can be arranged in a curve. The scaffold can be set up on any uneven slope or on a stepped foundation, and the other one can support a stepped formwork for early demolition. It can also achieve partial support frame dismantling, set up out of the passageway, but also with climbing, activity table, external row of shelves and so on to play a variety of support role, ringlock scaffolding can also be used as storage shelves, set up advertising project stage and so on, where the uprights can be in accordance with the needs of any joint field, for some relatively high building to provide more convenient conditions, it is less structure, build and dismantle the time is very convenient.

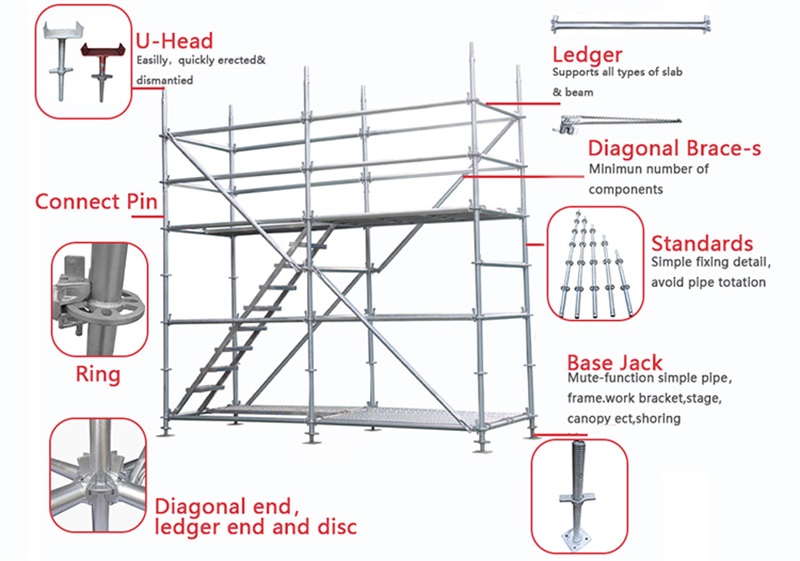

The basic structure and special components of the ringlock scaffolding enable the system to be adapted for use in various structural buildings; it consists of only three types of components: uprights, crossbars and diagonal ties, with uprights, crossbars and diagonal ties all made in the factory, one of which prevents the problem of traditional scaffolding movable parts being easily lost and damaged, reducing the economic loss of the construction unit; the other is that there are no movable locking parts, preventing the traditional scaffolding movable The second is the absence of any movable locking fasteners, which prevents the unsafe risks caused by traditional scaffolding activities.

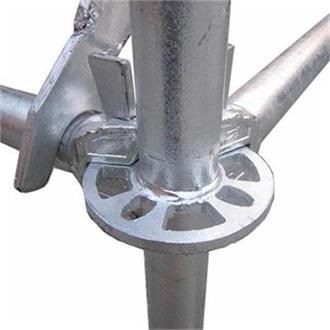

The ringlock scaffolding is more convenient and quicker to use: in use, it is only necessary to insert the plugs of the two ends of the cross bars into the corresponding cone holes on the uprights and then knock them tightly, the quickness of its erection and dismantling and the quality of the lap can not be achieved by traditional scaffolding. The speed of erection and dismantling is 4-8 times faster than that of fastening steel scaffolding.

It can be said that the ringlock scaffold can be used in any general construction scenario, but some special scenarios, such as high pressure work, require special scaffolding, such as insulated scaffolding. We also offer this type of scaffolding, so if you need it, you can contact us directly!
