What is steel prop
What is Steel Prop?

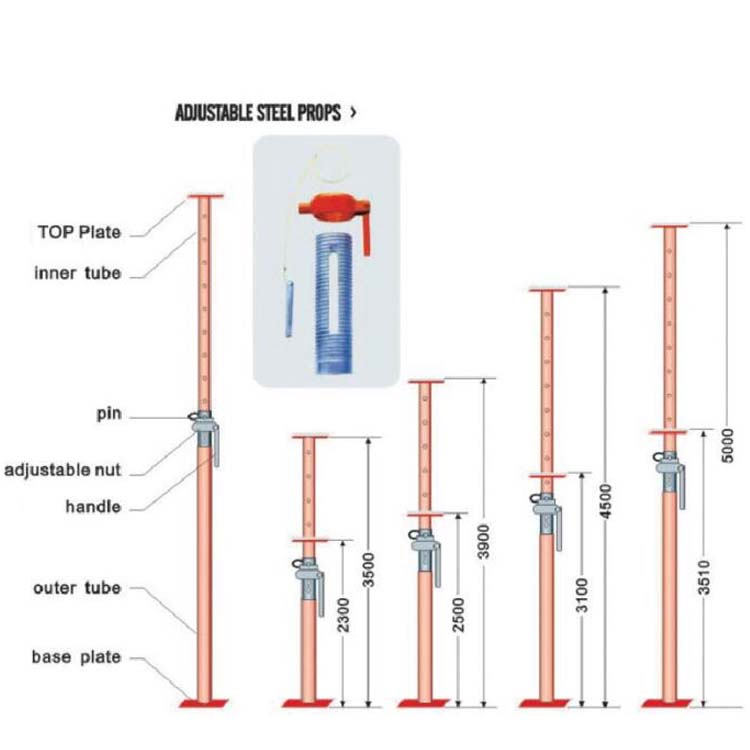

Steel prop is an adjustable pipe shape tool for concrete formwork supporting. The high-strength steel pin passes through a groove on the outside and a hole on the inside for coarse adjustment. A cast collar located under the pin allows fine adjustment for leveling or percussion. Rolled threads ensure that no material or strength is lost at this critical point. This is to ensure safety during project construction.
Spanish Steel Prop
|
Ajustable Length |
Outer Tube |
Inner Tube |
Wall Thickness |
|
0.8~1.4M |
48mm |
40mm |
1.5~2.5mm |
|
1.6~3.0M |
48mm |
40mm |
1.5~2.5mm |
|
2.0~3.5M |
48mm |
40mm |
1.5~2.5mm |
|
2.2~4.0M |
48mm |
40mm |
1.5~2.5mm |
|
Ajustable Length |
Outer Tube |
Inner Tube |
Wall Thickness |
| 1.6~2.9M | 56mm | 48mm | 1.5~2.75mm |
| 1.8~3.1M |
56mm |
48mm |
1.5~2.75mm |
| 2.0~3.6M |
56mm |
48mm |
1.5~2.75mm |
| 2.0~4.0M |
56mm |
48mm |
1.5~2.75mm |
|
Ajustable Length |
Outer Tube |
Inner Tube |
| 1.4~2.7M | 60.3mm | 48.3mm |
| 1.6~2.7M |
60.3mm |
48.3mm |
| 1.62~2.64M |
60.3mm |
48.3mm |
| 2.0~3.9M |
60.3mm |
48.3mm |
| 2.1~4.1M |
60.3mm |
48.3mm |
| 2.5~4.5M |
60.3mm |
48.3mm |
| 3.0~5.0M |
60.3mm |
48.3mm |
1. Steel prop is widely used in construction and DIY industries as a temporary supports for ceilings, trenches or walls.
2. Indoor construction Support.
